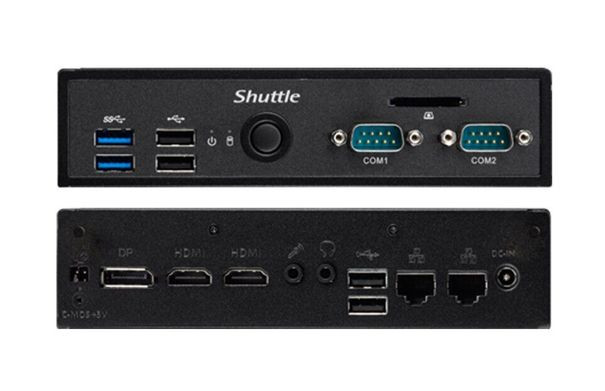

Системний блок Shuttle DS77U

Комплектація Celeron 3865U/0*2/0

FORM FACTOR Shuttle 1.3L Chassis

PROCESSOR Intel Kabylake-U Celeron 3865U 15W CPU

i3 7100U, i5 7200U, i7 7500U (optional)

MEMORY 2 x 260 pin DDR4 SODIMM slots, 16GB per DIMM (Max 32GB)

Dual Channel DDR4 2133Mhz

VIDEO OUTPUT (2)HDMI + (1)DisplayPort (without Audio/Hotplug)

Support triple independent display 4K/2K playback

Integrated in CPU (Intel HD 620 Graphics)

AUDIO Realtek ALC662 2 channel High Definition audio

ETHERNET Intel i211 and i219LM

100Mb/s and 1Gb/s operation

Support Wake-On-LAN function

Realtek RTL 8188EE 802.11 b/g/n WLAN module

STORAGE INTERFACE 6.0Gb/s bandwidth SATA3

ONBOARD CONNECTORS (1) 2.5 inch SATA connector

(1) Auto Power on Jumper

(1) Clear CMOS

FRONT PANEL (1) Power on button

(1) Power LED

(1) HDD LED

(2) USB 2.0 ports

(2) USB 3.0 ports

(1) RS232/RS422/RS485

(1) RS232

(1) SD Card reader

BACK PANEL (2) RJ45 Gigabit LAN

(2) HDMI

(1) DisplayPort (without Audio/Hotplug)

(2) USB 2.0 ports

(1) MIC in

(1) External 4 pin header (Clear CMOS/Power Switch/5V)

(1) DC-in

(1) Kensington lock

(2) Wireless antenna fixture

DRIVE BAYS (1) 2.5" HDD / SSD bay

DIMENSIONS 200(L) x 165(W) x 39.5(H) mm

POWER Input:100- 240V AC

Output: 19V/3.42A or 12V/5.42A DC

65W 19V Adapter bundled

EXPANSION SLOT (1) M.2 2280 Type M key socket

(1) M.2 2230 Type A,E Key socket

OS SUPPORT Windows 10

Linux
