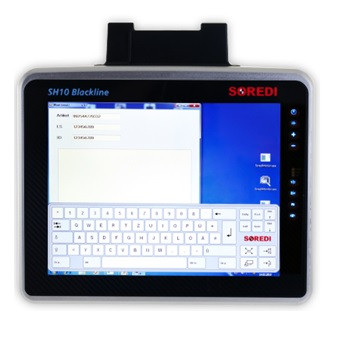

Термінал збору даних Soredi SH10 Blackline клас "А"

AMD G-T40E/2GB DDR3/0
Chassis - Coated Aluminium, no-fan design
Mounting - Bracket for stationary and mobile use
Size - SH10: 278 x 223 x 66 mm,
Weight - SH10: 3,6 kg
Display LED (intern)- SH10: 10,4“ Colour-TFT, SVGA 800 x 600, 400 cd/m², 4,8 watt
SH10: 10,4“ Farb-TFT, XGA 1024 x 768, 400 cd/m², 4,8 Watt
Touch-Screen - Multi-Touch, Projective Capacitive Touch incl. glassfront in carbon design
Architecture - AMD G-T40E
Sound - On Board: high definition audio incl. amplifier
Mass storage - none, CFast
Interfaces - RS232 2 x RS 232, COM1 with 5 and COM 2 with 5/12 VDC available for scanner
USB 1 x USB 3.0, 2 x USB 2.0
RJ45 Ethernet 10/100/1000 MBit/s on Board
Internal slots - WLAN, WPAN 1 x PCIeMini Card for WLAN or combi module WLAN/Bluetooth
Sound 1 x Sound
Interfaces on-top - USB 1 x USB
SDHC 1 x SDHC
CFast 1 x CFast base
Network connection - WLAN IEEE 802.11
RJ45 Ethernet 10/100/1000 MBit/s on board
Power supply - (internal) for AC voltage 110/230VAC, 64 W, 50 to 60Hz
Direct current 12/24 VDC and 24/48 VDC voltage, 40 W, galvanically isolated,
voltage lack up to 6V respectively 12V for >5 ms bridgeable
Power consumption Typically 18 W to 30 Watt, Green Power EUP 2011 < 0,5 Watt idling cycle
Features - Automatic shut-off Via signal or On/Off Switch at the front
Front keys S1-S4, KEY request, light/dark
Environmental - conditions Protective system IP54 / IP65 / IP67 (after approved assembly of the cable cover)
Test symbol CE/FCC Class A
Temperature ranges Operation: -35° to +55°C, Storage: -40° to +70°C
Rel. humidity 10% to 90% at 40°C, non-condensing
Vibration/Shock Class 5M3 at EN 60721-3-5: 1998 (landcrafts)
