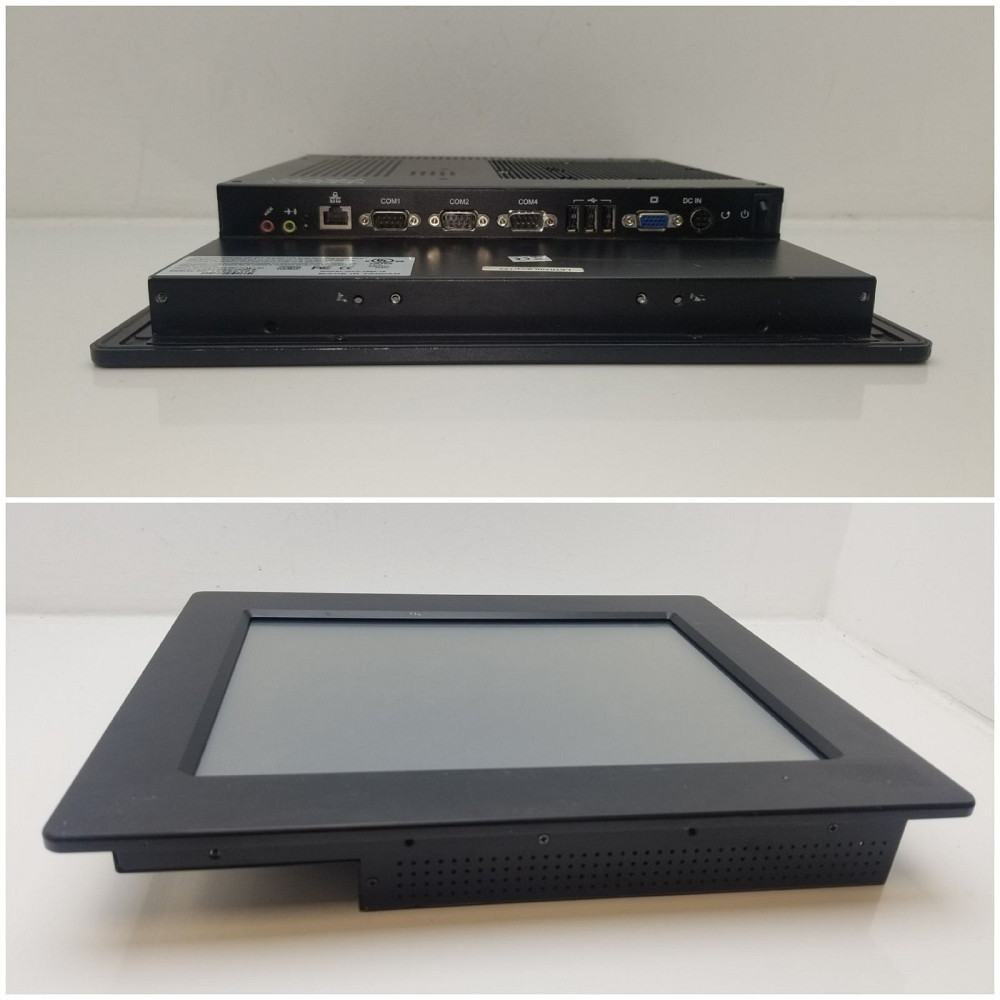

Сенсорний вбудовуваний моноблок 15" Wincomm WLP-7920-15 клас "Б"

Комплектація - Inttel Atom D525/4gb DDR3 SODIMM/0*2.5

System

CPU - Atom D525 1.8G

FSB - 800MHz

Chipset - South bridge: Intel® ICH8M

Audio - Realtek ALC268 Audio Codec, 2+2 watts power amplifier

Memory - Single Channel, two DDR3 SODIMM socket support up to 4GB

Serial ATA - SATA II controller (3.0Gb/sec) Port x 2

Serial port- RS232/422/485 x 1, RS232 x 2

USB - External USB 2.0 type A x 3 Internal Mini-PCIE x 1 (for Wifi) 3.3V socket x 2 (for Blue tooth) 5V Pin Head to expansion x 2

HDD - 2.5” SATA HDD drive bay x 1

SATA DOM - 2nd SATA connector pin7 with VCC_(+5V)

Mini-PCIe - 52 pin card-edge type x 1 support half/full size (for WLAN module)

External I/O - USB 2.0 x 3 DB-9 x 3 (RS232/422/485 x 1, RS232 x 2) RJ-45 x 1 (Gigabit Ethernet) 3.5mm phone jack connector * 2 (Line-out, and Mic-in) DB-15 x 1

Power Input - DC12V~28V

Mechanical & Environmental

Material construction - Front bezel is Aluminum or SECC, others are SECC enclosure

Front Panel Protection - IP66/NEMA4X

ID design - Panel mount Open frame

Operation Temperature - 12V DC Input 0~50℃ (IEC60068-2-56, air flow cooling)

Storage Temperature - -20~65℃

Operation Relative Humidity - 10%~90%, non-condensing

Storage Relative Humidity - 10%~90%, non-condensing

Dimensions - Panel mount: 398x330x58 mm

Net Weight - 6.6 kg

Mounting - Panel mount/VESA (75x75)

Wincomm
